Precision in Modular Design

The technology components can be individually fitted to any of the machine types.

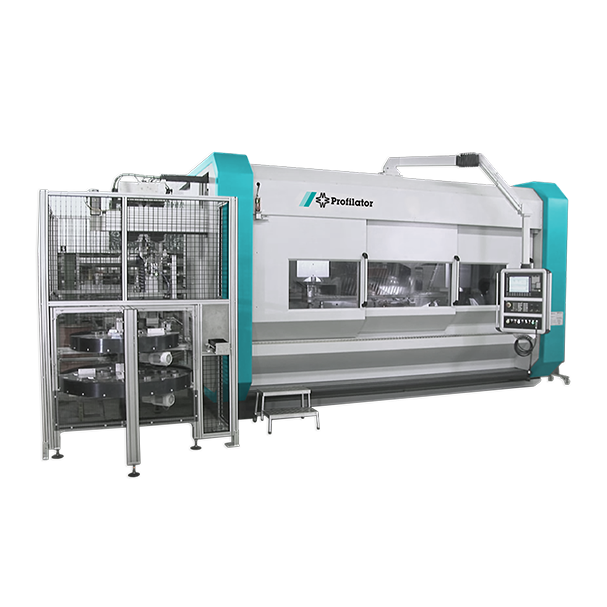

Profilator V-Type
The Profilator V-Type is a vertical modular system designed for machining of clutch and synchro gears.

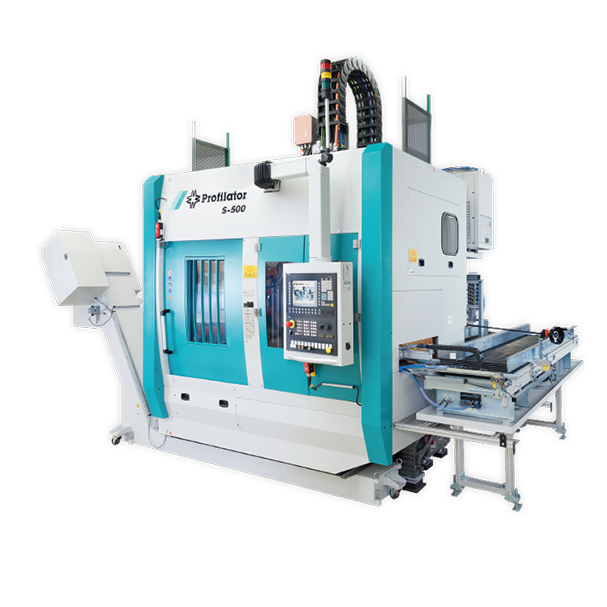

Profilator S-Type
The Profilator S-Type is a compactly and modularly designed, vertical, single spindle pick-up gear cutting machine.

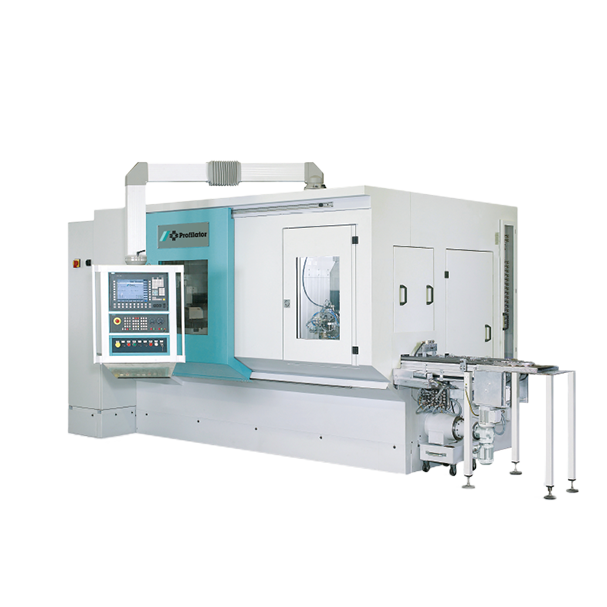

Profilator H-Type
The Profilator H-Type is a horizontal modular system designed for machining of clutch and synchro gears.

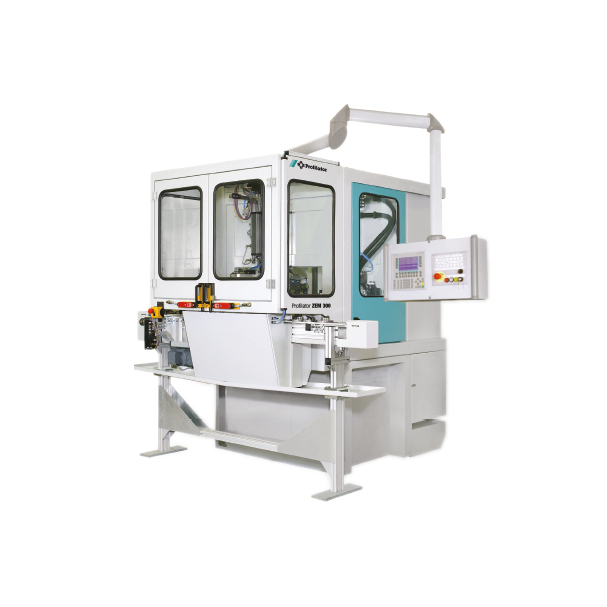

Deburring machine ZEM
The vertical modular system of the ZEM offers all the advantages of the proven vertical design such as free chip fall and optimal accessibility.

Advancement through technology

Profilator has developed machining concepts and machining processes which are exactly coordinated to the requirements of the customer. High precision, flexible production processes, short cycle times, low investment and operation costs.

Depending on the machining task, we combine the different machining modules for gear cutting, cycloidal cutting, pointing, shifterstops or deburring into an efficient customer solution. The freely programmable tool-workpiece-synchronisation offers the best possible flexibility.

Technologien

Scudding
Highly modern new development based on the traditional gear skiving

Find out more

Gear tooth pointing

With gear tooth pointing all pointing forms are produced either in rotary or indexing modes

Find out more

Shifter stop machining

Continuous cutting process for the production of shifterstops on the internal gear of the sliding sleeves

Find out more

Pocket groove milling

Continual cutting process for the production of grooves on the inner gear of the sliding collar

Find out more

SCUDDING

Internal & external gears

Highly modern new development based on the traditional gear skiving: Profilator has further developed 100-year-old gear skiving to the SCUDDING® high performance gear cutting process with the help of innovative machining and the most modern tool technology.

SCUDDING® is a continual gear cutting process which makes both the production of external and internal gears as well as spur and helical gearing possible.
